Applications of the Zettasensing ZSBM100X Series Chips

  • The ZSBM1001 supports single-lead applications.
  • A single ZSBM1003 chip can support 1 to 5-lead applications.
  • By cascading 2-3 ZSBM1003 chips, 8 to 12-lead applications can be supported.
  • When cascaded, multiple chips can share the Wilson Central Terminal (WCT).
  • When cascaded, chips operate on a unified clock system:
    • Multi-lead signals measured by multiple chips are strictly synchronized.
    • Only one set of clock components is required when using an external clock.
  • The ZSBM100X series is suitable for numerous scenarios, including:
    • Sports heart rate monitors
    • Medical-grade ECG patches and handheld ECG devices
    • Medical-grade multi-lead dynamic Holter monitors
    • Medical-grade multi-lead electrocardiographs (ECG machines)

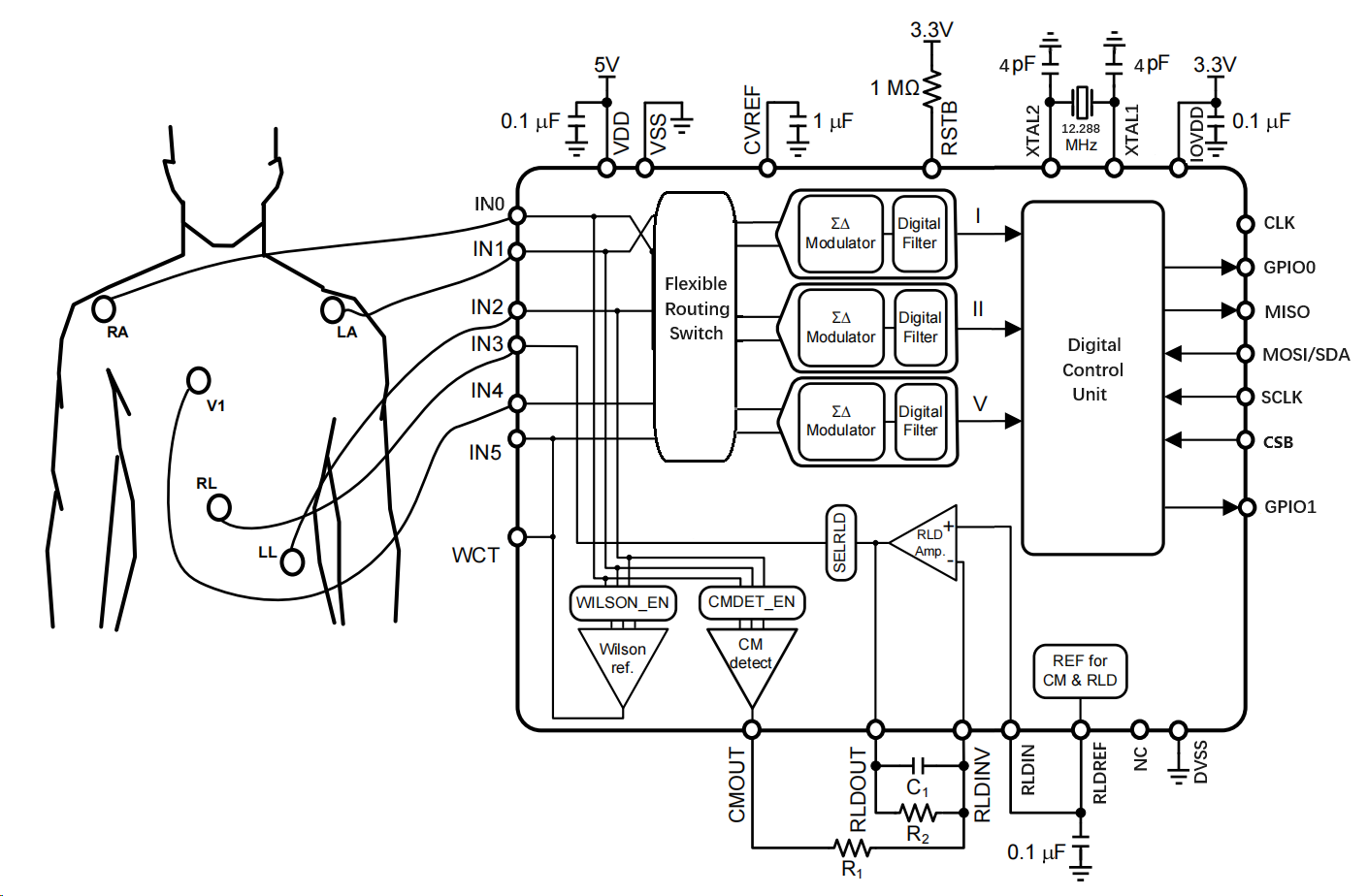

ZSBM100X Application Diagram 1

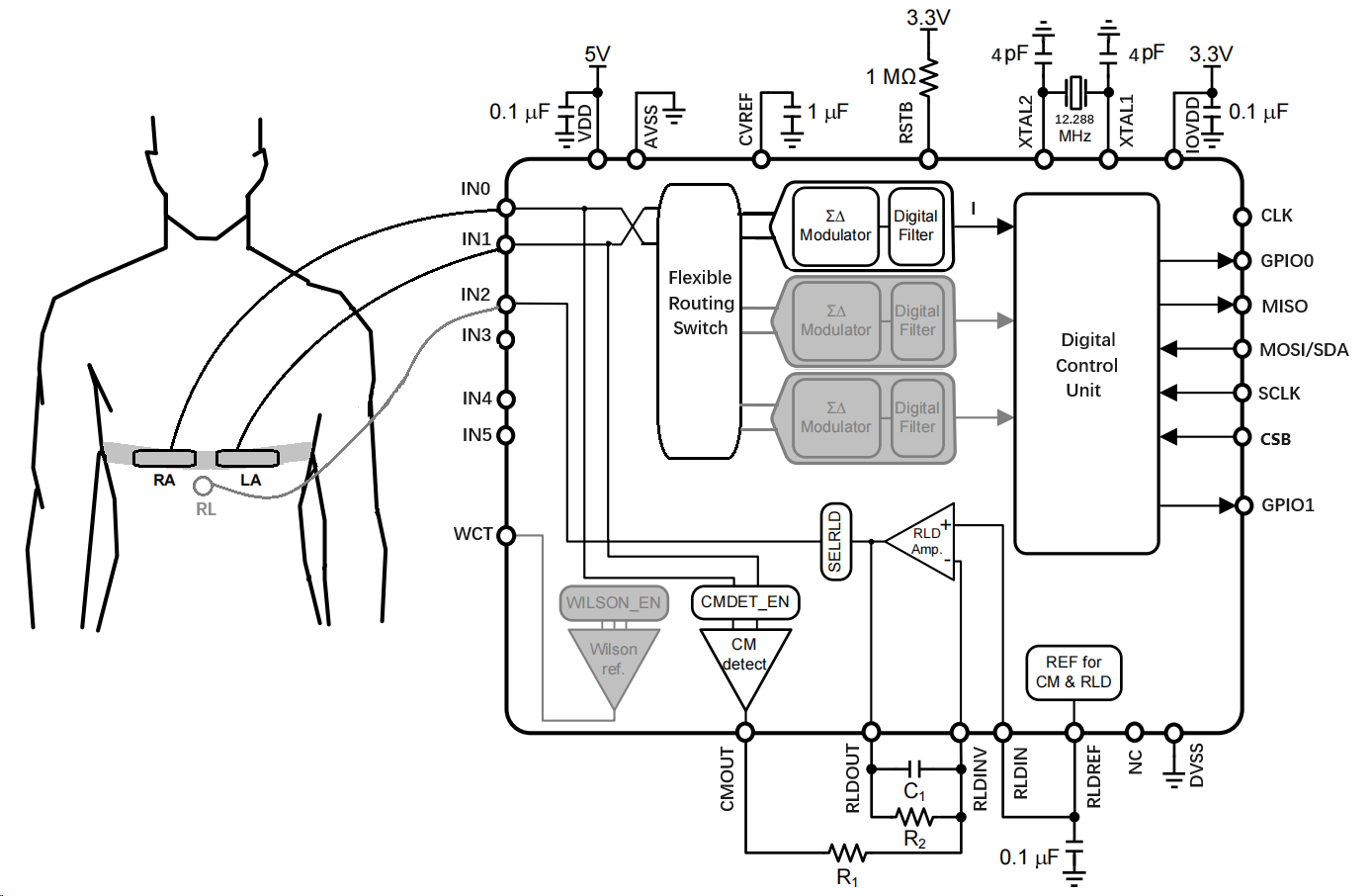

ZSBM100X Application Diagram 2

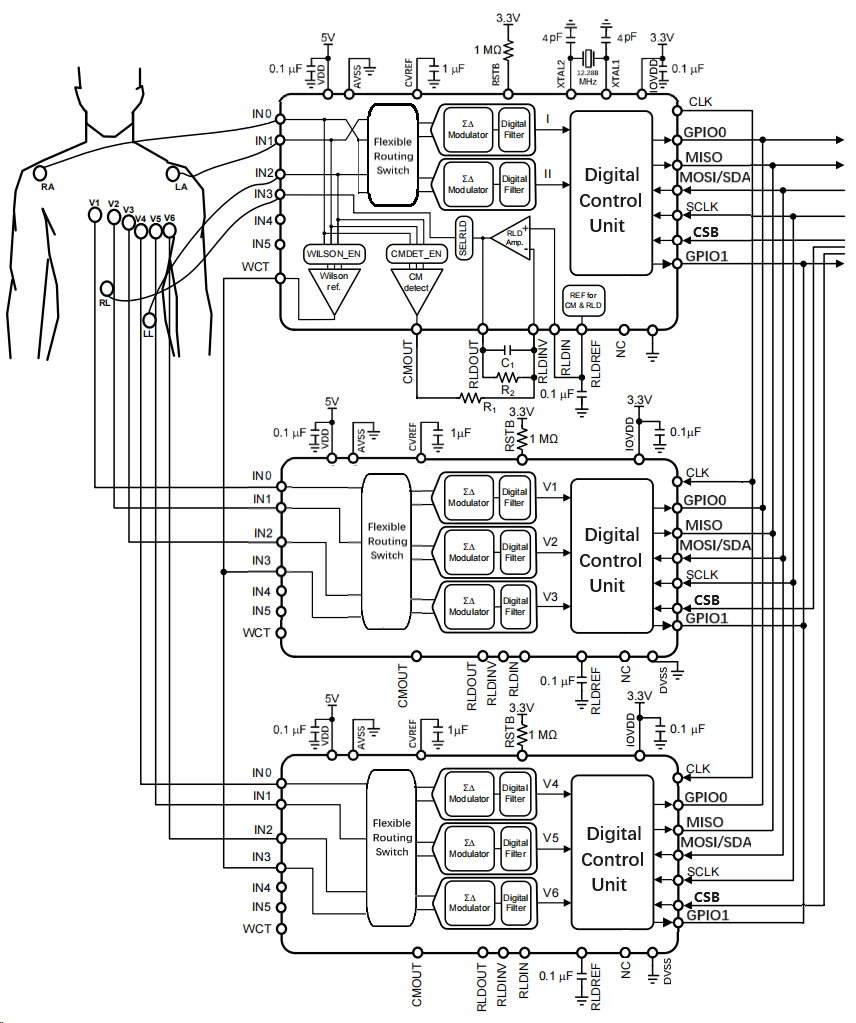

ZSBM100X Application Diagram 3
