Product Overview

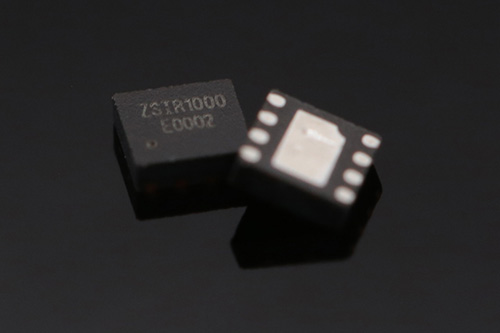

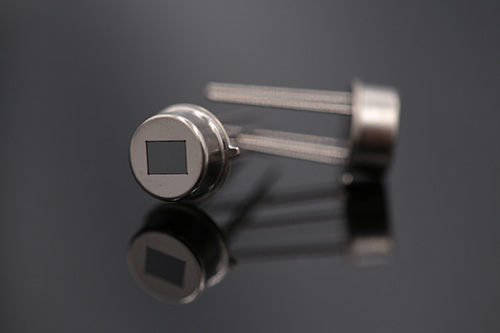

The ZSIR11XX series is a platform-based product family built on a unified digital signal processing core. The series ranges from a core signal processor (ZSIR1102) to a smart controller that requires no external MCU (ZSIR1100), as well as integrated sensors that package these components with a pyroelectric sensing element (ZSIR1112, ZSIR1110). Through this tiered product matrix, we provide customers with highly flexible, cost-effective, and deeply integrated end-to-end solutions designed to reduce costs and accelerate time-to-market.
Core Value
Advanced Digital Signal Processing
Built-in high-precision ADC and digital filters for high-sensitivity, high-interference-resistance, and stable detection.
MCU-less Smart Control
Features complete built-in application logic to independently handle user interaction, dimming, charging, and more, eliminating the need for an external MCU.
Integrated Power Management
Integrates constant-current lithium battery charging, supporting both USB and solar modes to simplify power supply design.
Flexible System Integration
Supports master-slave mode for dual-tech (IR/microwave) functionality. Available in various forms, from bare die to standard packages, to meet diverse integration needs.
Key Parameters
| Feature | ZSIR1102 | ZSIR1112 | ZSIR1100 | ZSIR1110 |
|---|---|---|---|---|
| Product Definition | Processor | Digital Sensor | Controller | Sensing Controller |
| Integrated Element | No | Yes | No | Yes |
| Standalone (MCU-less) | No | No | Yes | Yes |
| Charging Management | No | No | Yes | Yes |
Technical Overview
- Low-Power Design: Typical operating current of just 4.3µA extends the life of battery-powered devices.
- Interference Resistance: Select models feature enhanced EMS design to suppress RF interference, improving stability in complex electromagnetic environments.
- Wide Voltage Range: Supports a wide input voltage of 2.4V to 5.5V, enhancing design flexibility and compatibility.
- Reliability: Operates stably in harsh environments from -40°C to 85°C and features high ESD protection up to 4000V (HBM).
- Flexibility: Provides an I²C interface, allowing all key parameters to be configured via software to adapt to different scenarios.
Application Areas

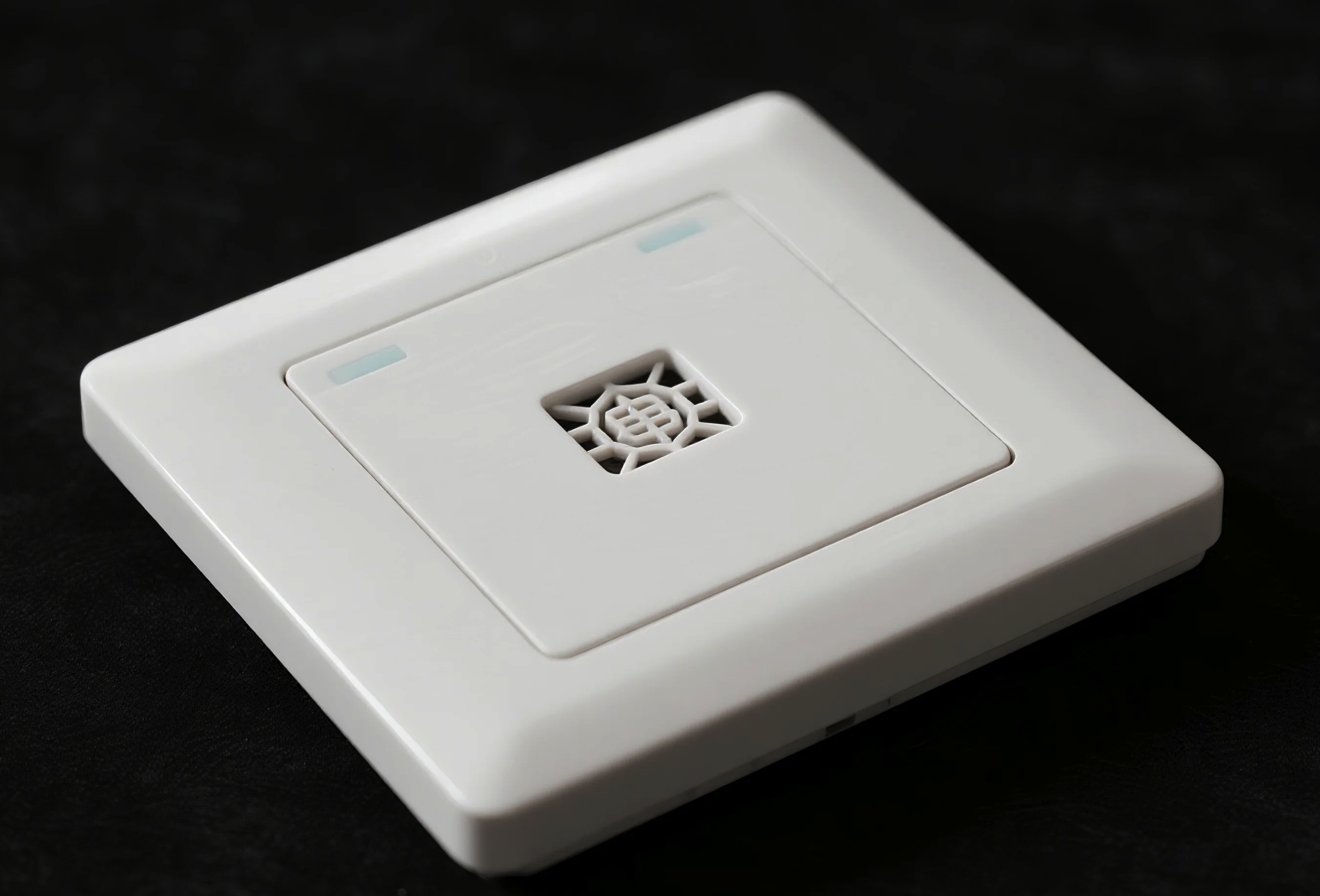

Standalone Smart Lighting
MCU-less design enables full functionality, including dimming, timing, and user interaction, without a host controller, reducing BOM cost and development time.

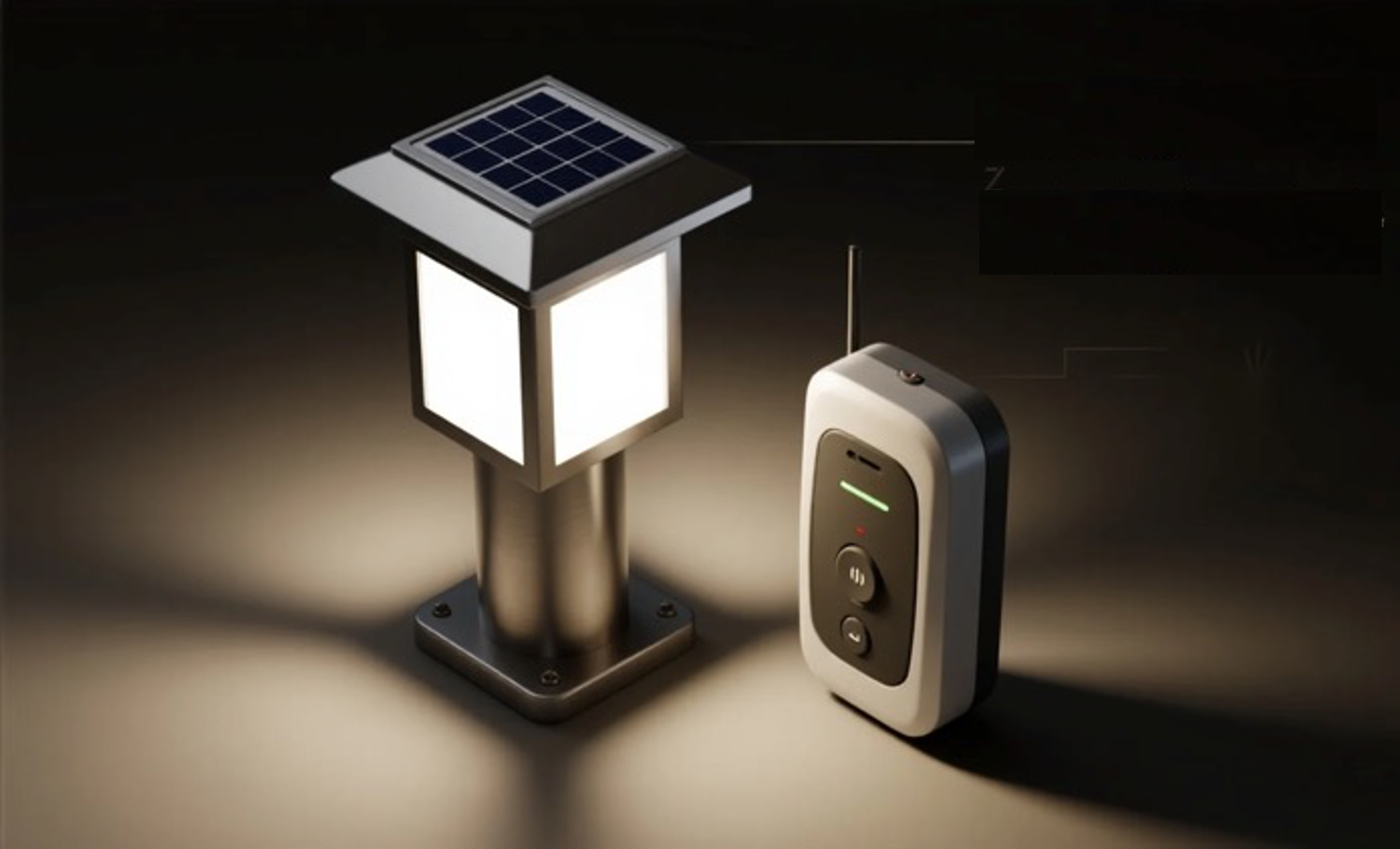

Battery-Powered & IoT Terminals
The 4.3µA low power consumption and integrated battery/solar charging management make it ideal for products with high battery life requirements, such as wireless alarms and solar garden lights.

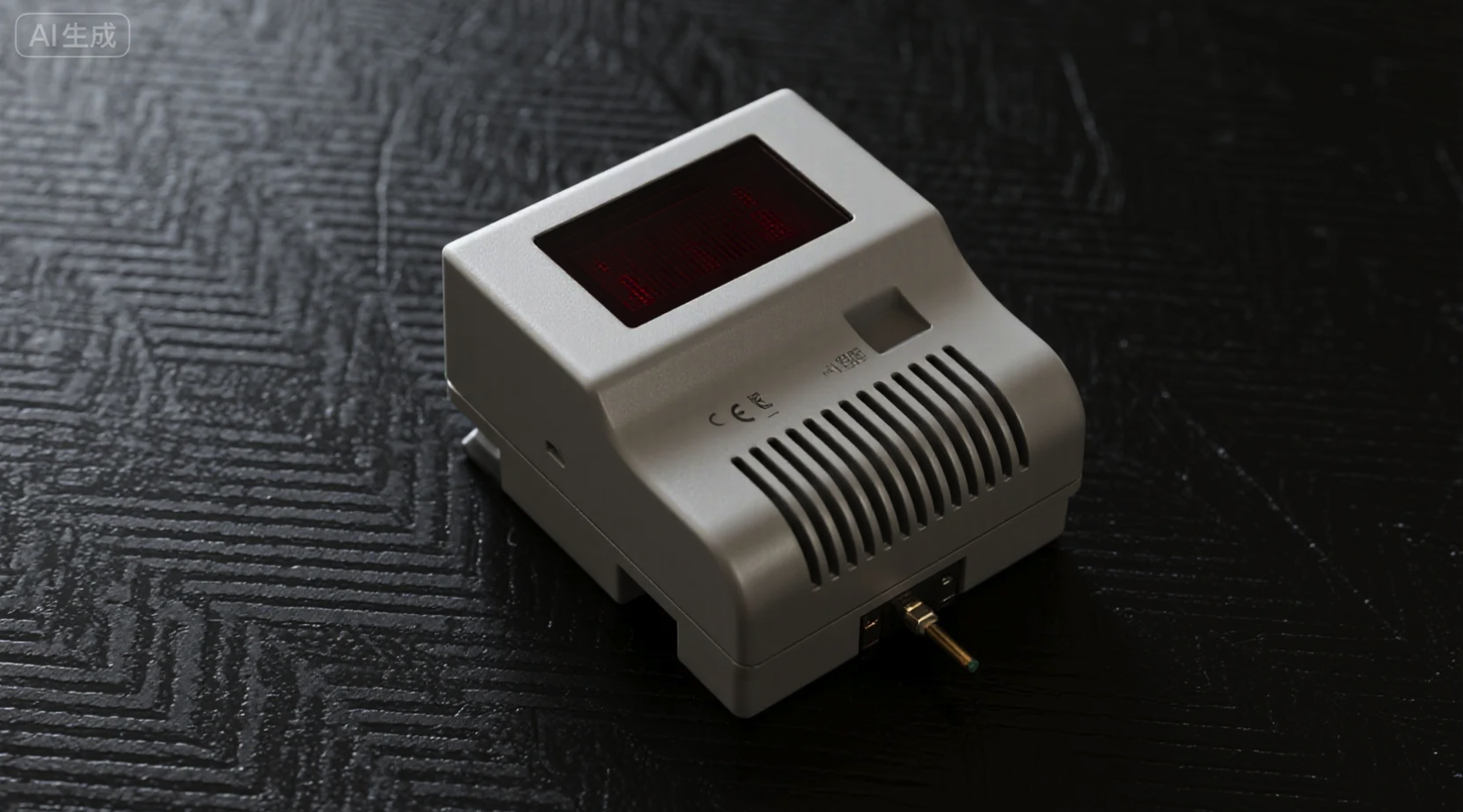

High-Reliability Security & Sensing
Supports master-slave mode to create dual-tech systems with microwave or other sensors, significantly reducing false alarms for professional security applications.

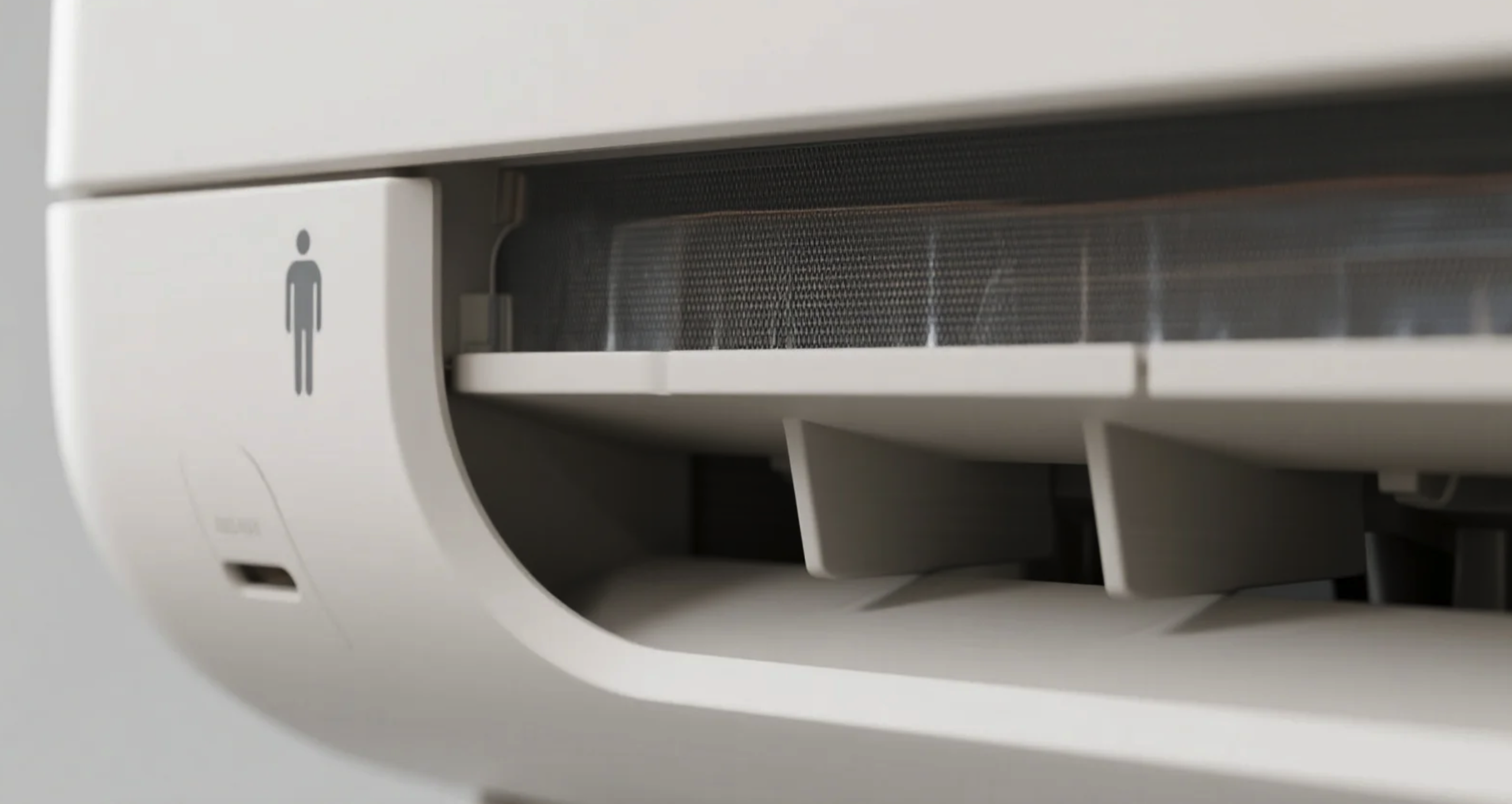

Embedded Integration in Smart Appliances
Provides a cost-effective and reliable digital PIR signal processing solution for smart appliances that already have a host MCU, such as air conditioners, air purifiers, and TVs.
