Product Overview

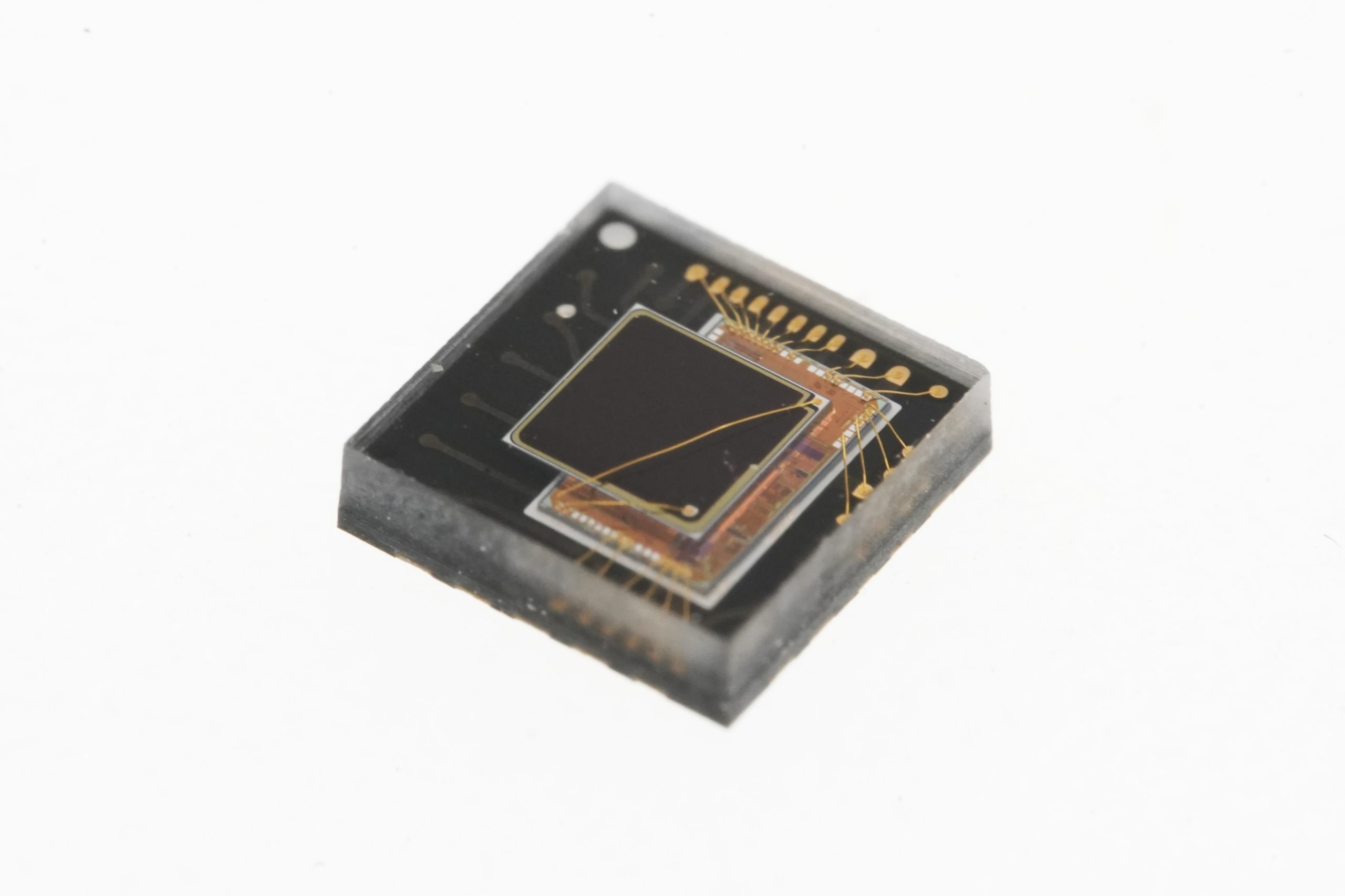

The ZSBM800X series is a dual-sensor platform designed specifically for wearable devices to meet the demand for multi-modal, high-precision health and vital sign monitoring. A single chip integrates an independent ECG engine and features a four-channel parallel PPG processing architecture. Continuing Zettasensing's low-power DNA, the PPG monitoring power consumption is as low as 10µA. It provides a one-stop solution from advanced hardware to intelligent algorithms, helping customers overcome tough design challenges and create competitive next-generation products.
Core Value
Low PPG Power
10µA system-level power consumption provides extreme battery life for all-day monitoring.
ECG Performance
Features a high 112dB SNR and 50GΩ high input impedance.
Parallel PPG Architecture
4 differential / 8 single-ended inputs support multi-site sensing and complex algorithms.
Functional Integration
Built-in Right Leg Drive (RLD), lead-off detection, and a large 1024-byte FIFO.
Ambient Light Rejection
60dB hardware-level automatic cancellation, ready for outdoor light challenges.
Platform-Based Solution
Offers flexible choices from a standalone AFE to a fully integrated SiP module.
Key Parameters
| ECG SNR | 112 dB |
| ECG Input Impedance | 50 GΩ |
| ECG Differential Input Range | ±500 mV |
| PPG System Power | 10 µA (@25Hz) |
| PPG Equivalent Input Noise | 4.5 nA rms (equivalent) |
| PPG Sampling Rate | Up to 16k Hz |
| ADC Resolution | Up to 24 Bits |
Technical Overview
- Compliant with YY 9706.247-2021 / IEC 60601-2-47:2012 standards
- Integrated AC and DC lead-off detection
- Provides 4 independently programmable measurement slots for multi-parameter synchronous measurement
- Supports 2-electrode and 3-electrode ECG configurations with a built-in RLD feedback loop
- Offers both SPI and I²C communication interfaces for easy system integration
- Built-in 12-channel programmable constant-current LED driver, supporting up to 240mA
- Wide operating temperature range from -40°C to 85°C ensures product reliability
Application Areas
High-End Smartwatches

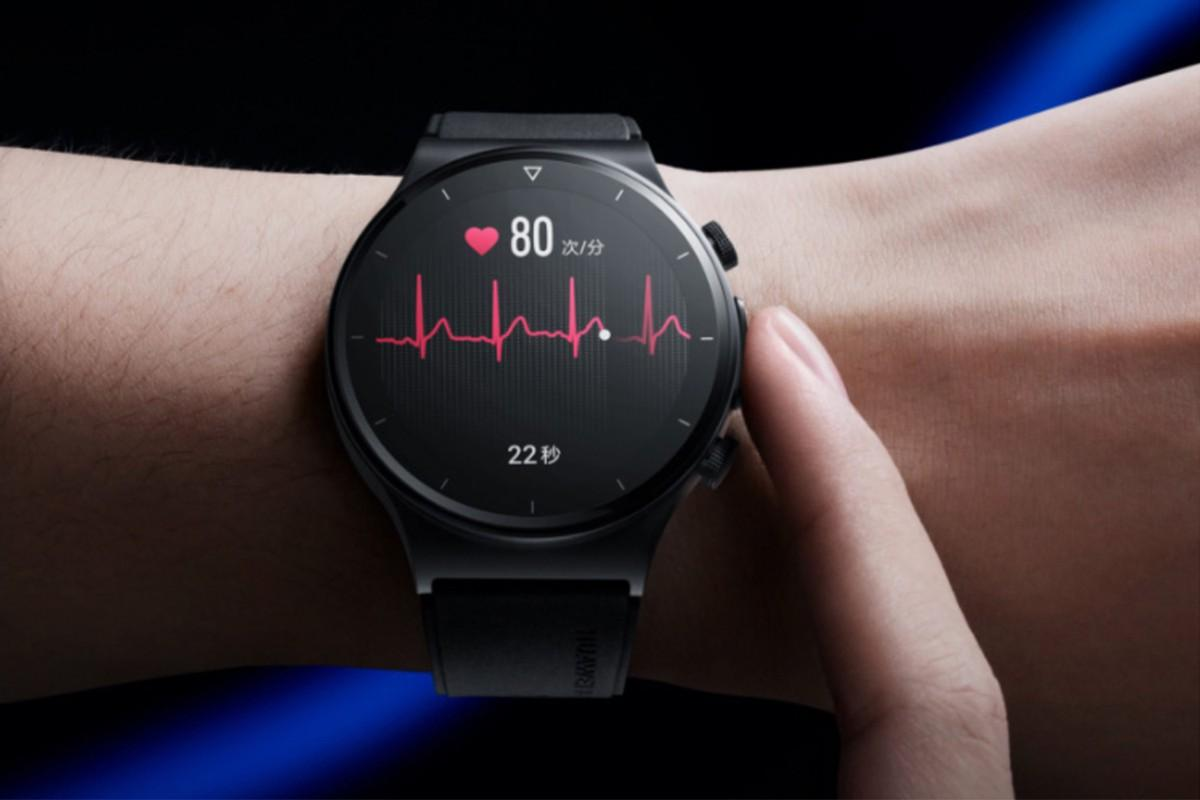

Integrates PPG and ECG to enable atrial fibrillation (AFib) screening and professional sports tracking.
Smart Rings

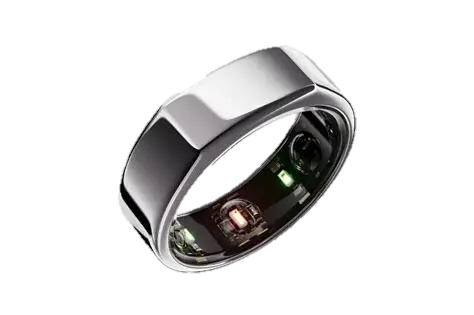

Achieves high-precision PPG heart rate and blood oxygen monitoring within the tiny form factor of a ring.
PTT Cuffless Blood Pressure Measurement

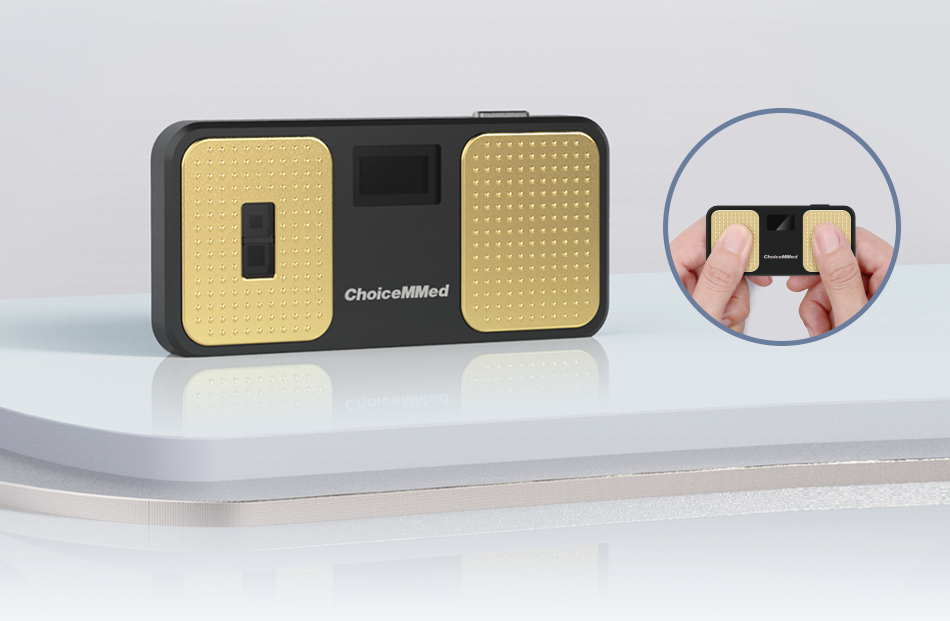

Simultaneously acquires ECG and PPG signals to provide high-quality raw data for blood pressure trend analysis.
Professional Sports Monitoring

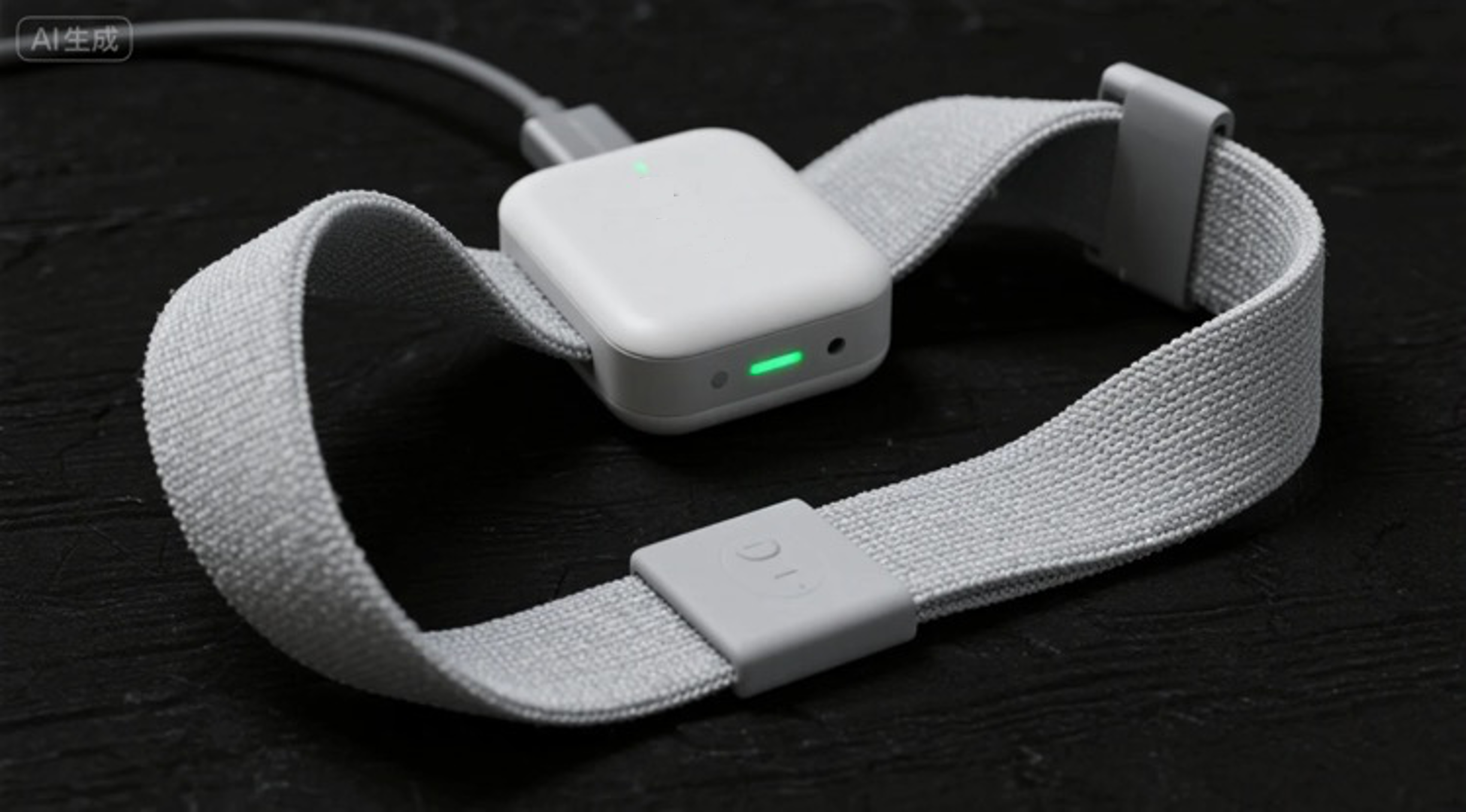

Utilizes 4 parallel PPG channels for more accurate motion artifact resistance and muscle oxygen monitoring.
