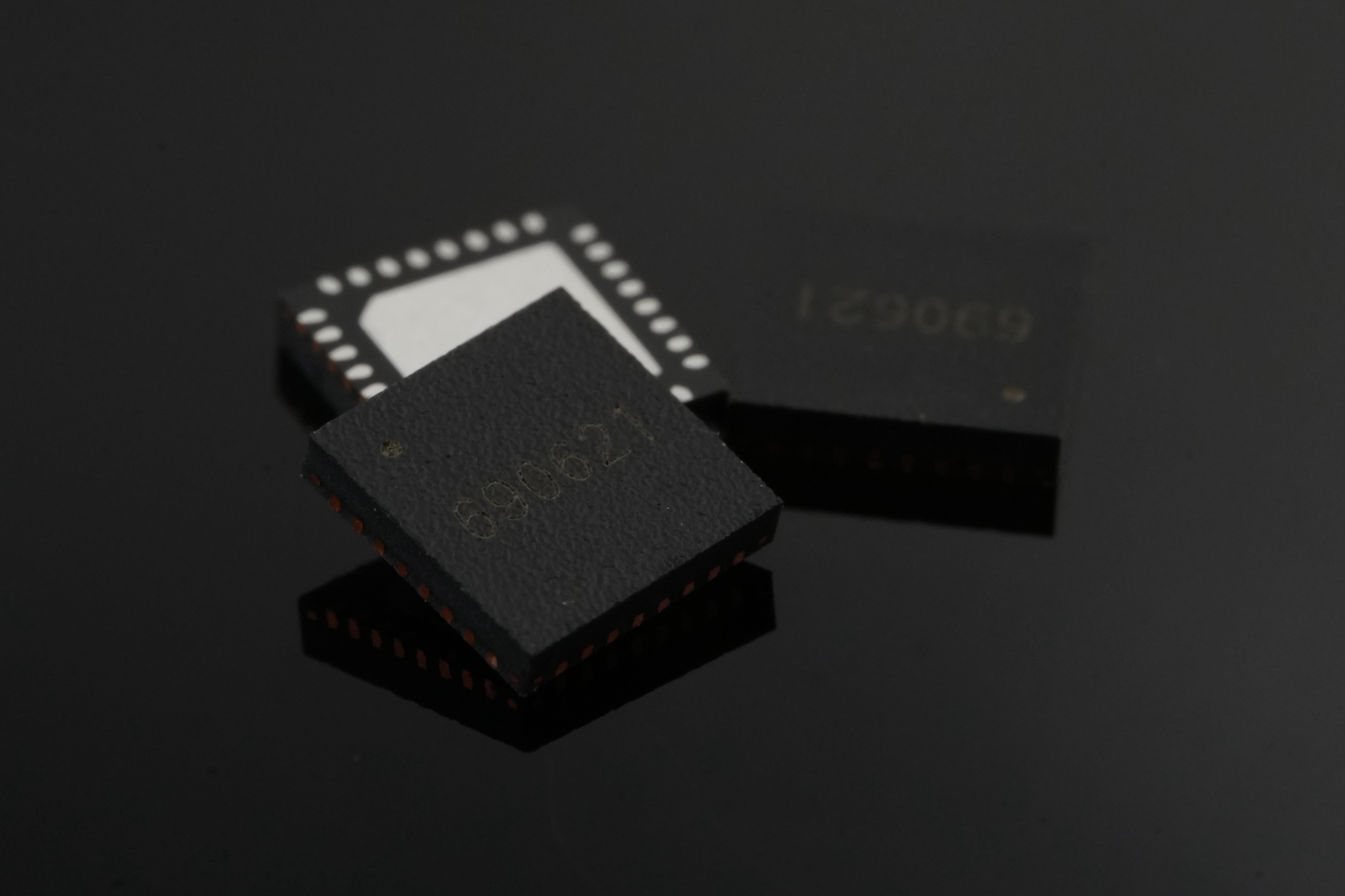

Product Overview
The ZSBM100X series is a low-power, multi-channel ECG analog front-end (AFE) designed for medical and high-end sports and health analysis applications. Built on a foundation of superior signal quality, it combines excellent analog performance with flexible system-level configurations and is highly integrated with the features required for professional ECG systems. It is designed to help customers easily build scalable ECG systems from 1 to 12 leads with a smaller form factor and lower power consumption, enabling applications such as ambulatory ECG (Holter) monitoring, patient monitoring, and scientific athletic training.
Core Value
Signal Quality
Low noise floor of 0.8µVrms ensures signal purity and diagnostic value.
Highly Integrated System
Large internal FIFO and data compression reduce external storage pressure and transmission power.
Flexible Architecture
Innovative signal routing switch allows flexible configuration of 1- to 12-lead systems.
Low-Power Design
Operating power consumption of only 0.2mW per channel, perfect for portable monitoring devices.
High-Precision ADC
3 independent high-resolution channels support up to 16ksps sampling rate and 24-bit output.
Interference Resistance
Integrated EMI filters at the input effectively suppress high-frequency RF noise.
Key Parameters
| Number of ECG Channels | 3 |
| Input-Referred Noise | 0.8 µVrms (@40Hz BW) |
| Data Rate | Up to 16 ksps |
| ADC Resolution | 24 Bits |
| Input Bias Current | 65 pA |
| Power/Channel | 0.2 mW (Typical) |
| Package | 28-pin QFN (5x5mm) |
Technical Overview
- Integrated DC lead-off detection
- Built-in flexible routing switch to connect any of 6 inputs to ADC channels
- Integrated Wilson Central Terminal and Goldberger reference point generation
- Supports high-bandwidth PACE pacemaker pulse detection channel
- Built-in programmable digital notch filter for 50/60Hz line noise rejection
- Supports multi-chip synchronous cascading for systems beyond 12 leads
Application Areas

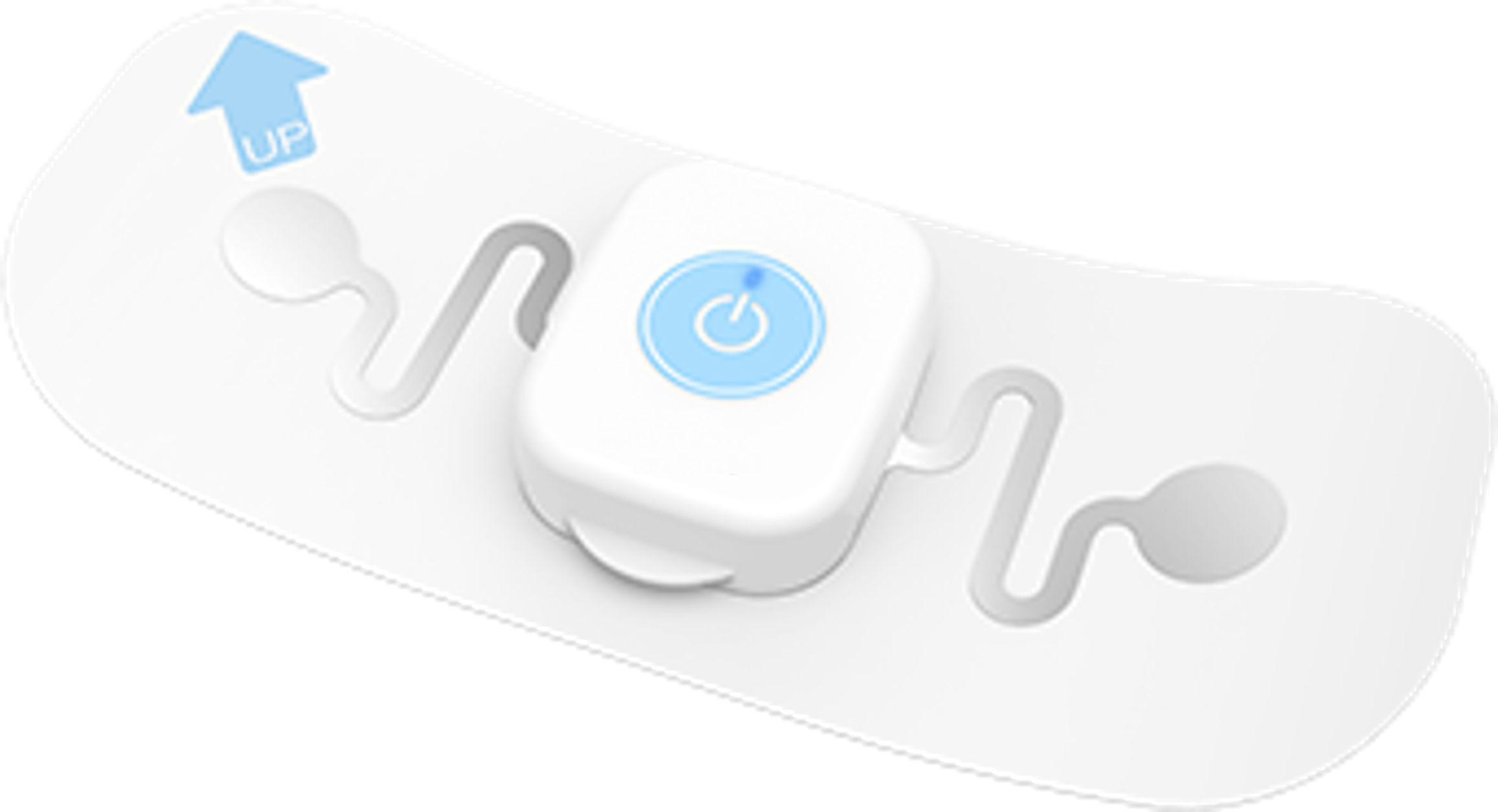

Ambulatory ECG (Holter) Monitors
Low power and high integration are ideal for 24/48-hour ambulatory ECG data recording.

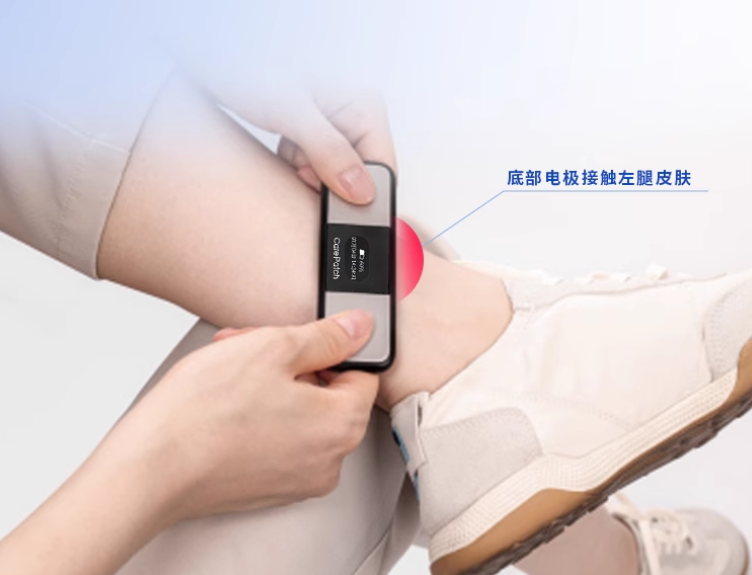

Portable ECG Cards
Small size and high precision provide a core solution for personal rapid ECG checks.

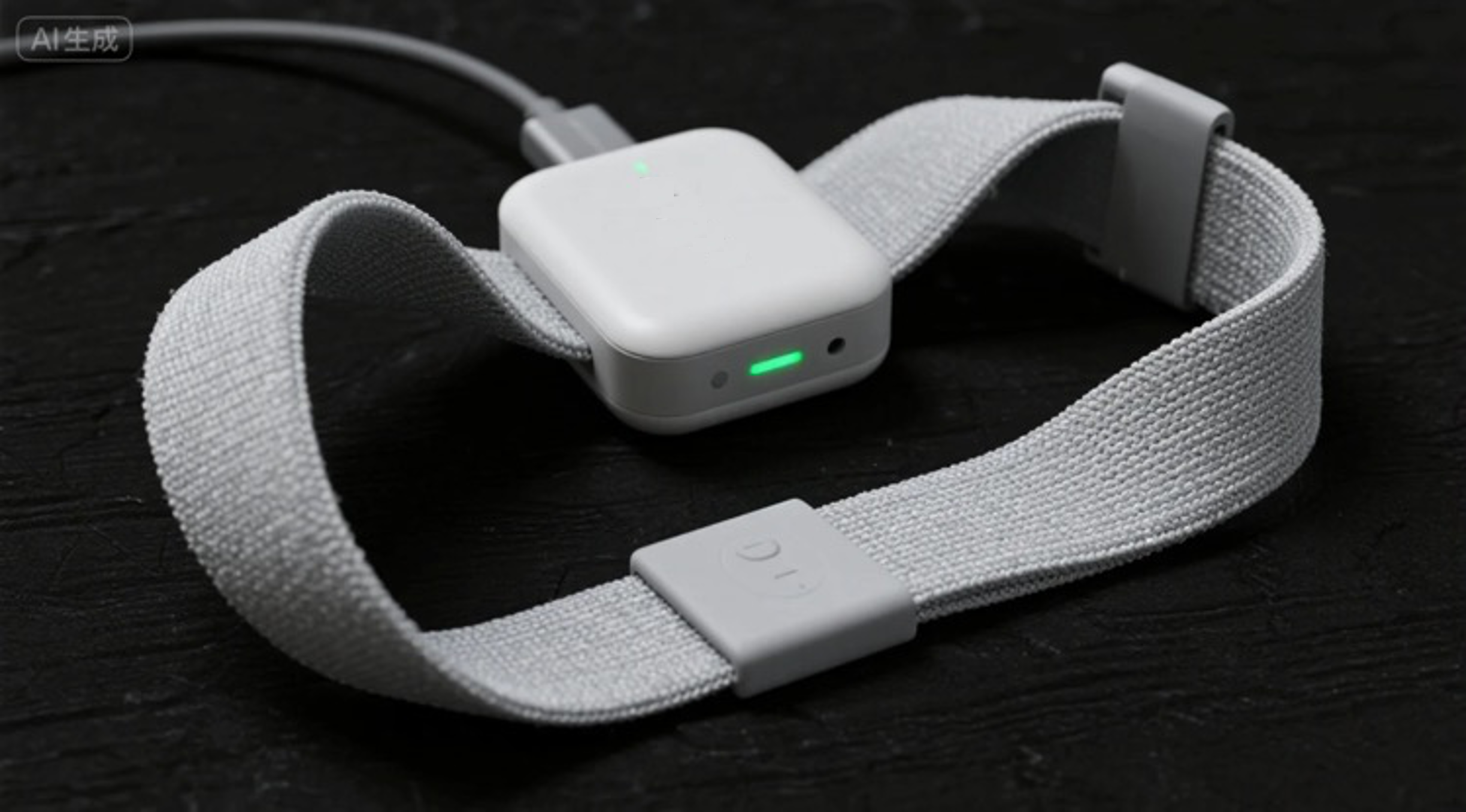

Professional Heart Rate Monitors
Replaces traditional PPG with precise ECG signals to provide gold-standard heart rate data for professional athletes.

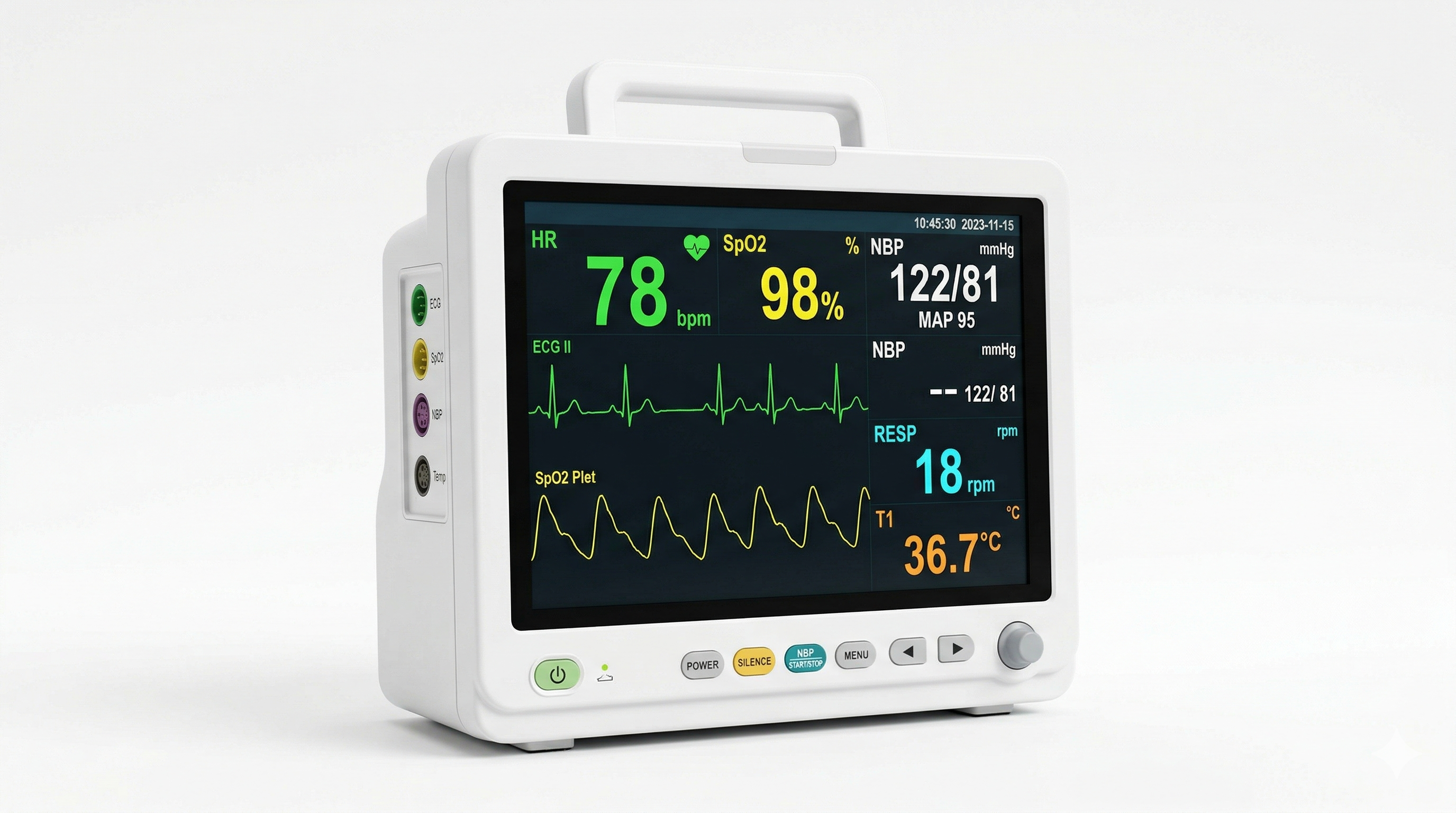

Multi-Parameter Patient Monitors
Multi-channel capabilities can be used in bedside or remote medical systems to build multi-lead monitoring solutions.
