Product Overview
The ZSPD400X series is a complete PPG sensing solution designed specifically for smart wearable devices. Its 10µA-level low power consumption enables all-day monitoring for battery-powered wearables, coupled with excellent ambient light rejection capabilities. The platform-based hardware options range from standalone chips to integrated optical modules, supplemented by core algorithms and reference designs, all aimed at helping customers create long-lasting and precise monitoring products.
Core Value
Low PPG Power Consumption
10µA-level power consumption enables all-day monitoring for battery-powered wearables.
Ambient Light Rejection
60dB hardware-level automatic cancellation.
High-Precision Dual-Mode ADC
Supports low-power 16-bit and high-performance 24-bit output modes to balance power and precision.
Platform-Based Solution

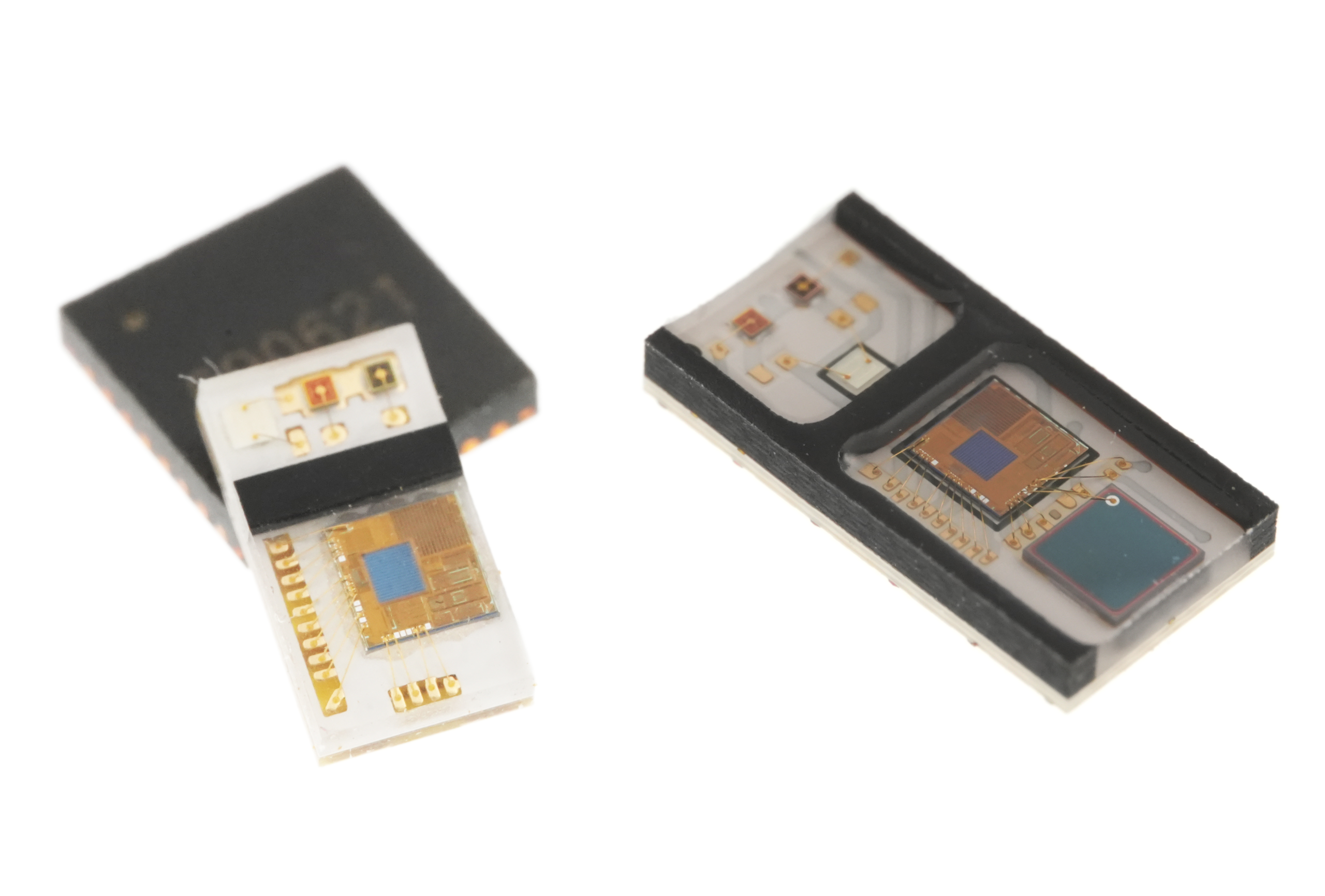

Offers flexible choices from a standalone AFE chip to a fully integrated SiP module.
Compact Package Size
Available in an easy-to-manufacture QFN package.
Advanced AFE
Integrates ADC, LED driver, and FIFO to simplify system design.
Key Parameters
| System Power (@25mA LED) | 10 µA |
| Ambient Light Rejection Ratio | 60 dB |
| ADC Resolution | Up to 24 Bits |
| Number of LED Drivers | 3 Channels |
| LED Driver Capability | Up to 240mA/channel |
Technical Overview
- 3 independent LED drivers, up to 240mA driving current per channel.
- 4 independently programmable measurement slots for multi-parameter synchronization.
- Supports 2 differential or up to 4 single-ended photodiode inputs.
- Inherits a unique low-cost Electrocardiogram (ECG) monitoring circuit.
- Provides an I²C communication interface; all key parameters are software-configurable.
- 128-byte FIFO buffer reduces MCU wake-up frequency.
- Wide operating temperature range from -40°C to 85°C.
Application Areas
Smart Bands
Provides the core for long-battery-life, high-precision, all-day heart rate and HRV monitoring in smart bands.

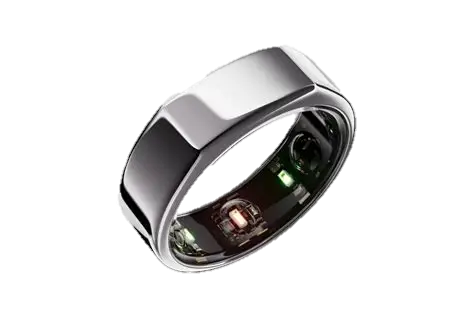

Smart Rings
With its low power consumption and WLCSP package, it is the ideal choice for continuous, high-precision sensing.

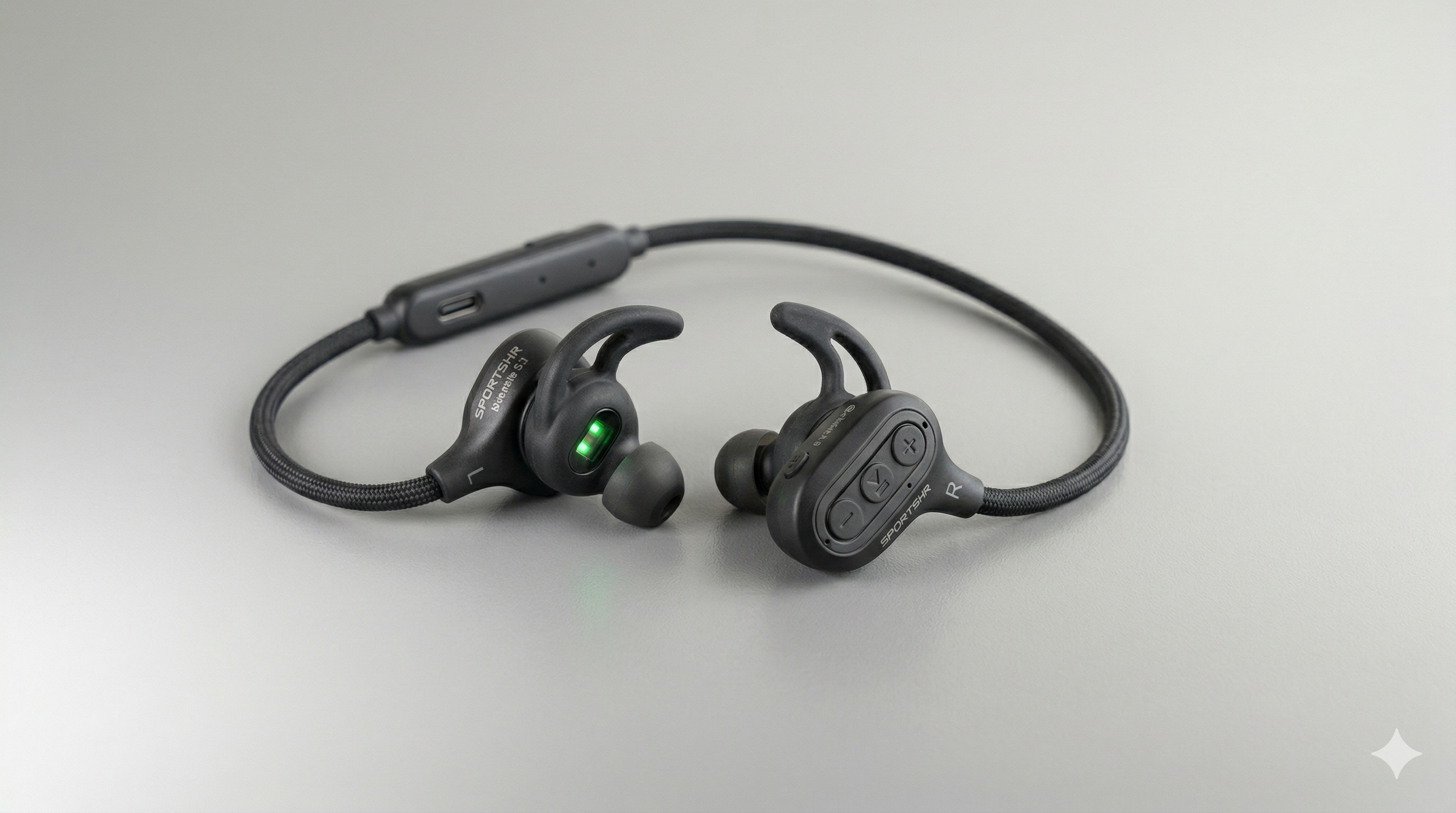

Sports Heart Rate Earbuds
Integrates a high-precision PPG module into earbuds to achieve accurate, motion-resistant heart rate tracking during exercise.

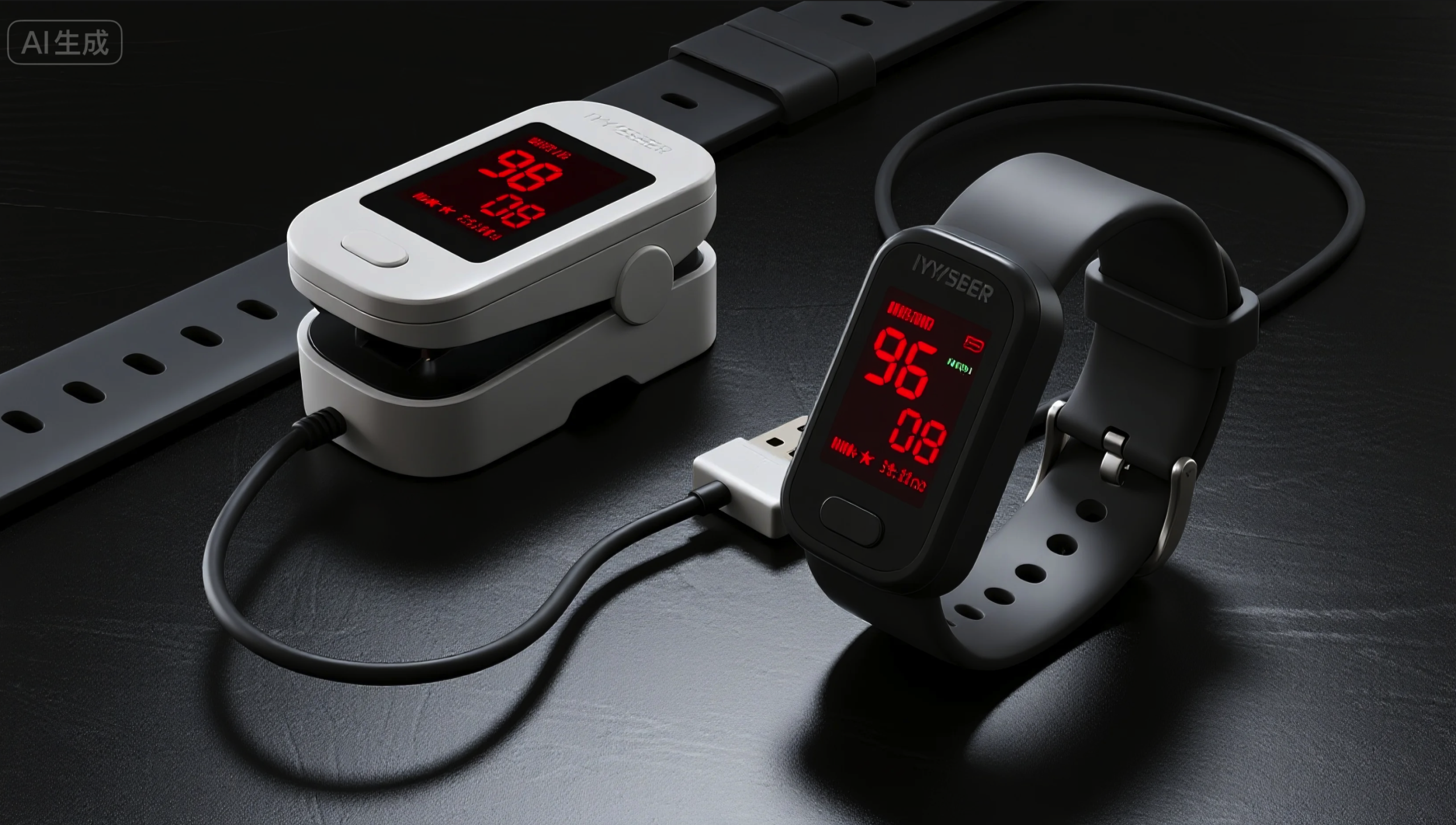

Oximeters
The highly integrated module version can be directly used in fingertip or wrist-worn pulse oximeters.
